Nitrogen separation 101: PSA nitrogen generators explained

What is nitrogen separation?

Nitrogen separation is the industrial process whereby very high purity nitrogen gas (N2) is separated from the Earth's atmosphere, which consists of roughly 78% nitrogen, 21% oxygen and 1% other gases. Nitrogen separation is a key step in industrial nitrogen generation that empowers a variety of applications, and can be achieved using different separation methods.

Cryogenic distillation is the most scalable method for producing large quantities of high-purity nitrogen gas. This requires ambient air to be compressed, cleared of contaminants and cooled to cryogenic temperatures (below -300°F / -185°C). Because nitrogen and oxygen have different boiling points, they can then be separated through fractional distillation, producing high-purity nitrogen at industrial scale.

However, cryogenic separation is generally most economical for very large-scale production due to its higher capital and infrastructure requirements, making it less practical for many on-site applications. That's where on-demand nitrogen generators come in!

On-site nitrogen generators typically use membrane or PSA (Pressure Swing Adsorption) technology for nitrogen separation. Membrane generators use bundles of hollow, semi-permeable polymer fibres. Components of compressed air such as oxygen, water vapour and carbon dioxide permeate through the membrane faster than nitrogen, leaving a nitrogen-enriched product stream. Membrane generators are typically compact and lightweight and can be well suited to applications where very high nitrogen purity is not required.

PSA generators are widely used for on-demand industrial nitrogen generation, particularly where high nitrogen purity is required, due to their cost-effectiveness over continuous use and easily adjustable purity levels. PSA systems use Carbon Molecular Sieves to separate nitrogen gas effectively, even for applications requiring a high purity supply.

Pressure Swing Adsorption - How it works

PSA systems use two vessels filled with Carbon Molecular Sieves. A clean, dry compressed air supply is pushed into the first vessel, where the oxygen molecules get trapped inside the CMS, but the larger nitrogen molecules pass through. Once the first bed is saturated with oxygen, the system switches between vessels, allowing the pressure in the saturated vessel to drop. The two sides switch continuously, ensuring constant production. Visit our article on absorption vs adsorption to learn more about PSA cycles.

Watch our video below to see PSA generation in action:

Advantages of PSA nitrogen generators

Long-term, cost-effective solution

By eliminating frequent delivery, admin and rental fees, PSA nitrogen generators offer a compelling return on investment.

Consistent supply

On-demand nitrogen generation ensures consistent performance even in the most demanding environments. PEAK's engineering expertise guarantees maximum uptime, low operating costs, enhanced safety and monitoring and total control over your supply.

Quality nitrogen gas

PEAK's PSA nitrogen generators can provide high-purity nitrogen for demanding applications across industries including food and beverage and pharmaceutical manufacturing, with selected systems capable of achieving nitrogen purities of up to 99.9995%.

Flexibility

PEAK Gas Generation's precisely engineered i-Flow systems excel at adapting to changing supply requirements. Production and manufacturing schedules can change quickly, and the i-Flow generators are able to keep up with changing requirements, including the option to extend an existing generator with additional CMS for higher flow rates while maintaining purity.

How do I know if a PSA nitrogen generator is right for me?

There are some key considerations to review when selecting a nitrogen generator. For applications with lower nitrogen purity requirements, membrane technology may provide a simpler and more economical solution. Where higher purities are required, PSA is generally better suited.

Another key consideration is the required flow rate. This should be assessed alongside purity, pressure and your consumption profile to determine the most appropriate generator size and separation technology. If you currently rely on regular cylinder or liquid nitrogen deliveries, on-site PSA generation may provide a straightforward and cost-effective alternative, particularly where a consistent supply of high-purity nitrogen is required.

To determine your consumption, always measure peak demand, check the paperwork of your connected equipment (packaging lines, laser cutters, or instruments), and perform an audit of your current gas use to convert consumption to flow rate units (such as SCFH or NM3/h). Feel free to get in touch with our team if you require help with this.

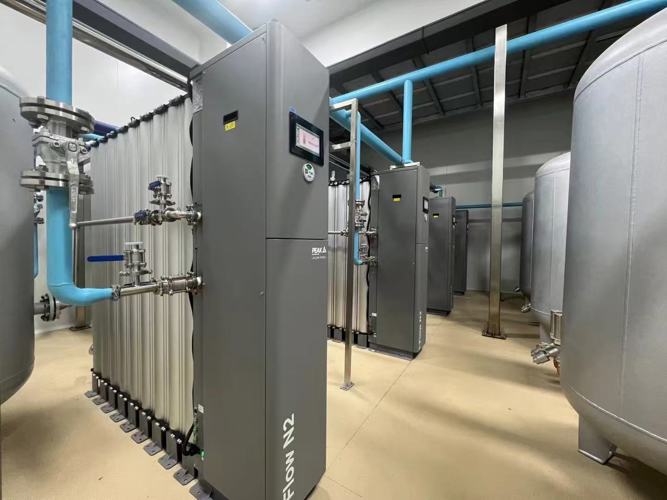

i-Flow Prime Installation 1Always make sure the environment the generator is placed into is well-ventilated, with stable temperature and adequate moisture/humidity control.

Lastly, it's important to consider your existing infrastructure and the available space. PSA systems require a clean, dry compressed air supply and should be installed in an environment that remains within the generator's specified operating temperature and humidity limits.

Already using compressed air for other systems? You should be good to go, but it's important to double-check you can match the required inlet pressure, moisutre/oil content, pressure stability and temperature control. Our experts can help you look into specific requirements.

Once up and running, regular maintenance plays an important role in the efficiency and longevity of a PSA nitrogen generator. Following our recommendations for scheduled maintenance will prolong the lifespan of your generator and ensure long-term reliability.

FAQ

Frequently Asked Questions

Interested in generating your own nitrogen on site?

Get in touch with the team at PEAK Gas Generation for a quote or consultation. Our team has decades of experience designing and manufacturing PSA nitrogen generators and can help you find the right system for your purity, flow and application requirements.
